Project Description

ABSTRACT

             This paper presents the smart walking stick based on ultrasonic sensors and Arduino for visually impaired people. There are approximately 37 million people across the globe who are blind according to the World Health Organization. People with visual disabilities are often dependent on external assistance which can be provided by humans, trained dogs, or special electronic devices as support systems for decision making. Thus, we were motivated to develop a smart white cane to overcome these limitations. We accomplished this goal by adding ultrasonic sensors at specific positions to the cane that provided information about the environment to the user by activating the buzzer sound. We proposed low cost and light weight system designed with microcontroller that processes signal and alerts the visually impaired person over any obstacle, water or dark areas through beeping sounds. The system consists of obstacle and moisture detection sensors for receiving, processing and sending signals to the alarm system which finally alerts the user for prompt action. The system was designed, programmed using C language and tested for accuracy and checked by the visually impaired person. Our device can detect obstacles within the distance of about 2m from the user.

HARDWARE REQUIREMENTS:

• Arduino UNO
• Ultrasonic Sensor
• Fell Down Sensor
• Node MCU
• Relay Driver
• Buzzer
• Power Supply
• LCD Display

SOFTWARE REQUIREMENTS:

• Arduino IDE
• Embedded C

ADVANTAGES:

• This stick is eligible for both inside and outside of the house.
• This project is very cost effective. Thus, every people can afford it.
• This project can also controlled via Android application
• Obstacle detection is very effective
• As we use the mother tongue, so every user can identify the messages.
• We can easily track the blind person.

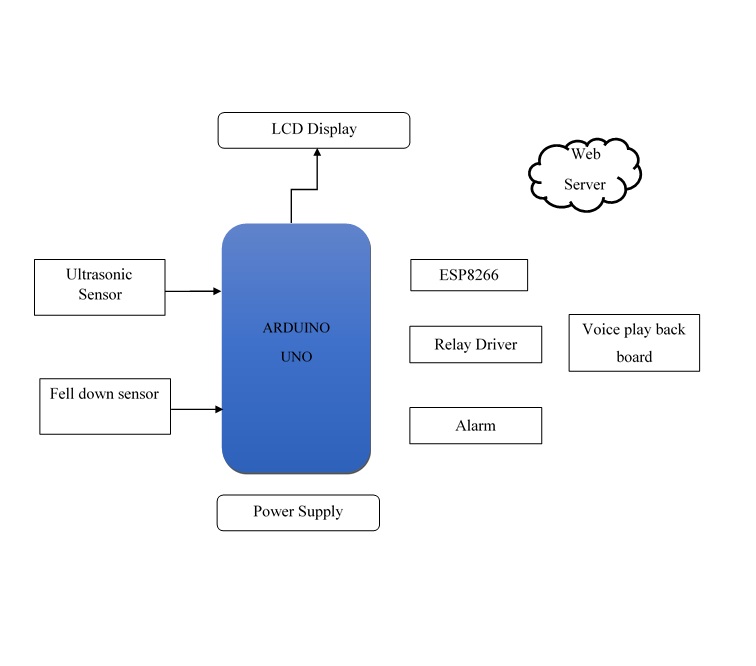

Project Block Diagram
